Trash Interceptor

Trash Interceptor

Details

High-Flow and High-Capture Trash Separator for Stormwater Management

Inexpensive Maintenance

The TrashTrooper® is designed for easy and inexpensive maintenance conducted at street level.

Safely Holds Trash

The intercepted holds collected debris in a separate compartment, which is periodically emptied.

Sized for Your Site

Featuring durable precast concrete construction and customization options to suit specific project requirements.

Customer Support

We collaborate with clients throughout the entire process, from initial designs and budget estimates to submittals, reviews, installation, start-up, training, and warranty.

Details

ParkUSA’s stormwater trash interceptor captures and removes solid waste, debris, and other pollutants from stormwater runoff. It is typically installed in stormwater systems that receive a significant amount of solid waste and debris, such as systems near parking lots, streets, and industrial sites.

The interceptor works by allowing stormwater to flow through a series of screens or filters that trap solid waste and debris. The intercepted waste is collected in a separate compartment, which is periodically emptied. The TrashTrooper® is easy to install, maintain, and operate. It features durable precast concrete construction and customization to suit specific project requirements.

How It Works

The Trash Trooper efficiently removes trash and debris from stormwater runoff as it passes through the first compartment and an inclined screen with equally spaced bars. The captured trash is retained in the first compartment while clean water flows into the outlet compartment and is discharged into the stormwater sewer. Solid debris is retained in the separator and accumulates until maintenance is performed. During high-storm events or if the screen becomes excessively clogged with debris, a bypass allows water to flow around the screen, preventing blockages and overflow.

ParkUSA’s stormwater trash interceptor is designed for easy underground installation and includes traffic duty access covers for convenient maintenance and inspection. With no moving parts, maintaining the interceptor system is affordable, and it can be emptied using a standard vacuum truck at street level.

Models

About the Precast Concrete Trash Interceptor

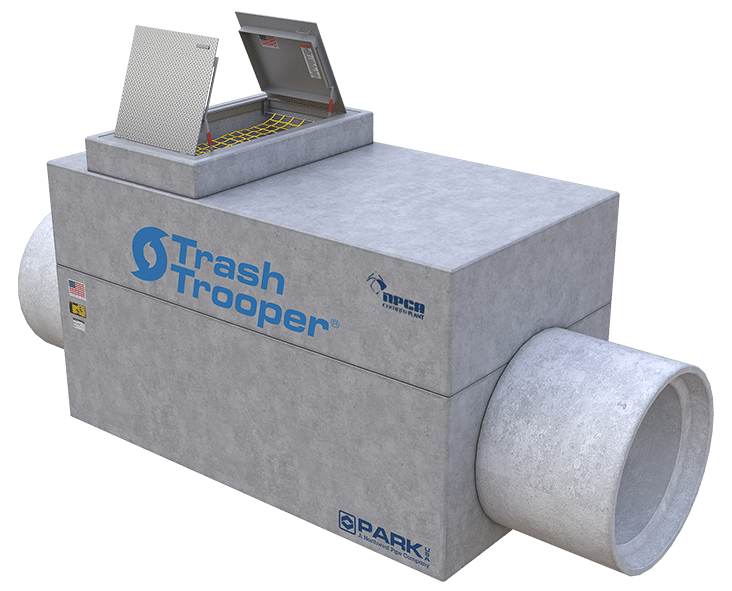

The TrashTrooper® TT is typically installed within a stormwater conveyance pipe system. The interceptor consists of a precast concrete structure with an inclined bar screen system and platform inside. The interceptor is designed for direct burial and includes heavy-duty access covers for cleaning and maintenance.

See it in Action

Applications

The TrashTrooper® is designed to remove solid waste, debris, and other pollutants from stormwater runoff.

Parking Lots

Trash separators can be installed in parking lots to capture debris and pollutants that may accumulate from cars and other vehicles.

Residential Developments

Neighborhoods and subdivisions can generate various types of trash, including litter, plastic bags, food waste, paper products, and green waste from natural vegetation or yard waste.

Streets and Highways

Trash stormwater separators can capture debris and pollutants that may accumulate from vehicle traffic.

Industrial Sites

Trash separators can be installed in industrial sites to capture pollutants and debris generated from manufacturing and other industrial activities.

Specs & Docs

TTB-1

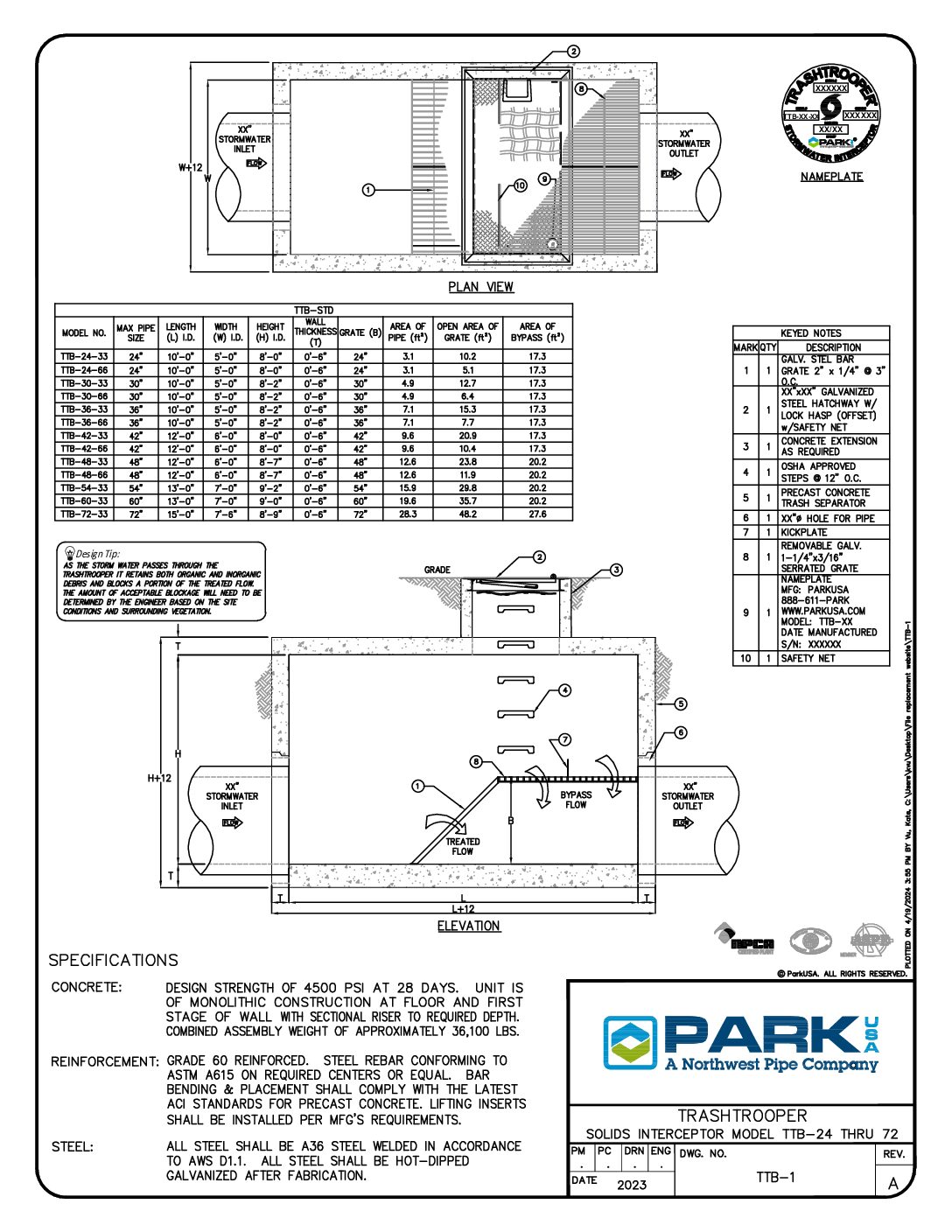

TrashTrooper Solids Interceptor (Model TTB-24 to TTB-72)

Ready for the ParkUSA experience?

With over 35 years of experience, we offer proven water management innovation, technology, and service.
