Reduce Costs with an Easy-to-Use Sack Hopper Mixing System

Durable Construction

Eductor body manufactured with heavy-duty carbon steel or optional stainless steel.

Powerful Mixing

Provides thorough and reliable blending of multiple liquid streams and liquid or powder chemicals.

Versatile Performance

An effective mixing hopper system for polymer blending, mixing chemicals, slurry walls, and drilling mud.

Details

The Park Process VenturiVac™ Hopper Eductor System is designed for the easy addition of dry materials into a liquid stream. Pumping liquid through the VenturiVac™ eductor nozzle and on through the Venturi section creates a low-pressure zone between these two components. Material is introduced through a conical hopper by gravity into this low-pressure zone where the motive fluid entrains and carries it to the desired discharge point.

It can be combined with a feed hopper to facilitate the addition of chemicals to the eductor’s suction port. This equipment can be skid mounted to enable it to be moved from one location to another. Feed hoppers range in size from 18” diameter conical shaped hoppers for sack material to 2.5 cu. yd. inverted pyramid hoppers for bulk bag unloading. The addition of a feed pump to the VenturiVac™ skid creates a self-contained system. Fluid can be pumped from the source then fed to the VenturiVac™ where dry powder chemicals are added and sent to a receiving tank, process system, vessel, or holding pond.

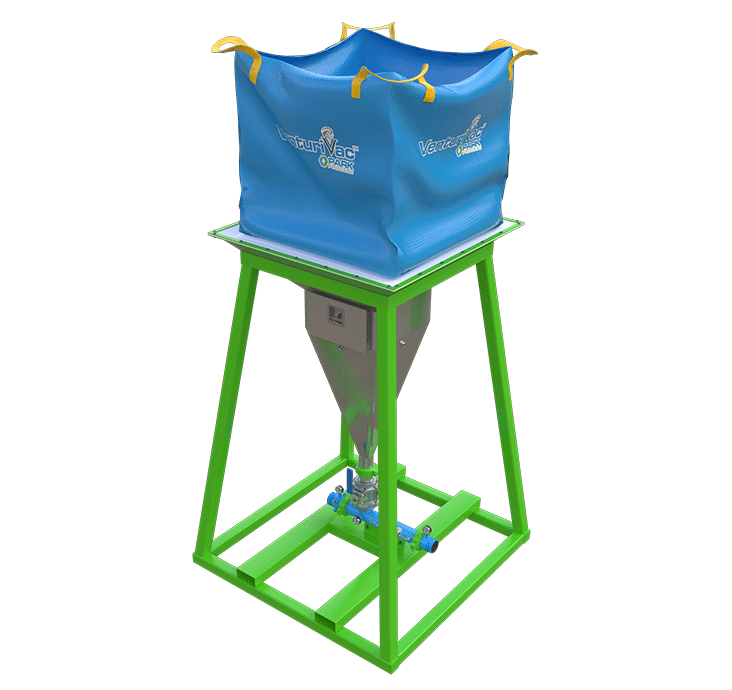

Our VenturiVac™ MaxSack Hopper model is a bulk bag unloading and conveying eductor system. The The MaxSack system is available in four standard sized eductors (2”, 3”, 4” and 6”), with the hopper section remaining the same for each size.

How It Works

The VenturiVac™ eductor uses the venturi effect of a converging diverging nozzle to convert the pressure energy of a motive fluid to velocity energy, creating a low-pressure zone that draws in and entrains suction fluid and/or solids. After passing through the throat of the VenturiVac™, the mixed fluid expands and the velocity is reduced which results in re-compressing the mixed fluids by converting velocity energy back into pressure energy. This process allows the exiting stream to continue downstream long distances and upwards many feet of head.

Our VenturiVac™ MaxSack Hopper model uses water as the motive force to unload the bulk bag and carry the material to the desired discharge point.

Models

About the VenturiVac™ Sack Hopper

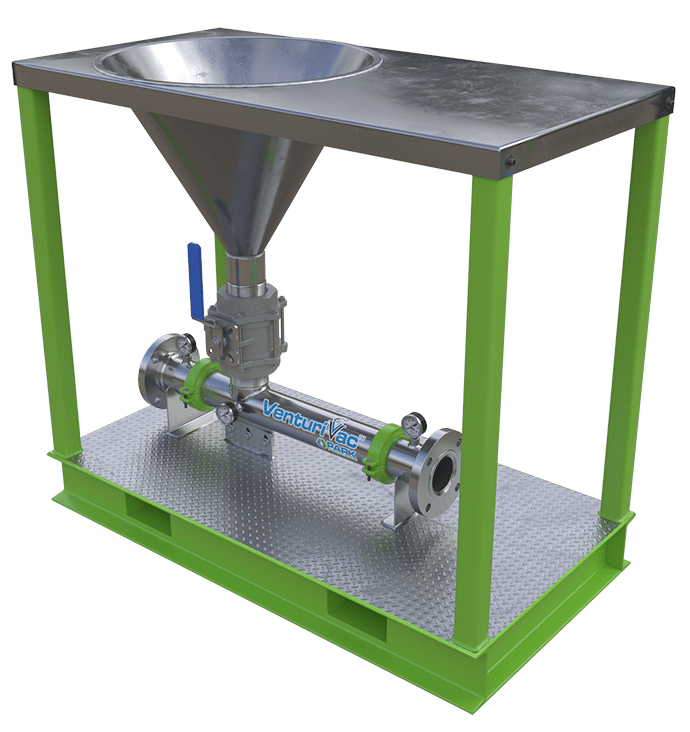

The VenturiVac™ Sack Hopper Eductor System is constructed of a carbon steel eductor body with special coating (304 or 316 stainless steel is also available). It comes equipped with a stainless steel hopper, chemical table, and wetted parts on the valve between the hopper and eductor. The heavy-duty carbon steel skid includes fork pockets on which other components are mounted. The removable nozzle and venturi are made from abrasion and chemical resistant materials. Pressure gauges are installed on the inlet and outlet nipples and a vacuum gauge is installed on the eductor body.

Applications

Park Process Eductor Systems are uniquely engineered to accomplish specific mixing and blending tasks in a versatile range of applications.

Chemical Blending

Our Eductor Systems provide a simple solution for efficiently batch mixing chemicals, ensuring consistency and uniformity in blended solutions and resulting in a higher quality end product.

Polymer Blending

Water and wastewater treatment plants can use Eductor Systems for effective polymer blending to aid in flocculation processes.

Transferring Solids with Liquids

Park Process Eductor Systems offer an efficient and cost-effective method of transferring solids using liquids.

Making Drilling Mud

An Eductor System can be used to effectively and economically mix drilling mud, improving efficiency and lowering costs in drilling operations.

Slurry Wall Mixing

Our Eductor Systems are effective in blending common slurry mixtures like cement-bentonite used to construct slurry walls for building foundations, tunnels, waste containment, and groundwater control.

Installing and Removing Filter Beds

Water Treatment Plants utilize Eductor Systems to mix, convey, and remove filter media bed materials including anthracite, sand, and resin.

Specs & Docs

Flyer

VenturiVac™ MaxSack Hopper

Flyer

VenturiVac™ Sack Hopper
