Acid Neutralization System

Acid Neutralization System

Details

Laboratory acid neutralization treatment system with 24/7 monitoring

Treat and Neutralize Wastewater

Our system isolates and neutralizes acidic water with added agents and rock media.

pH Alerts

System continuously records the effluent’s pH level and alerts the operator when it is out of compliance with regulation.

Helps Meet Local Codes

This system ensures that wastewater discharged into public sewer systems adheres to the necessary pH levels and meets local codes.

Remote Monitoring

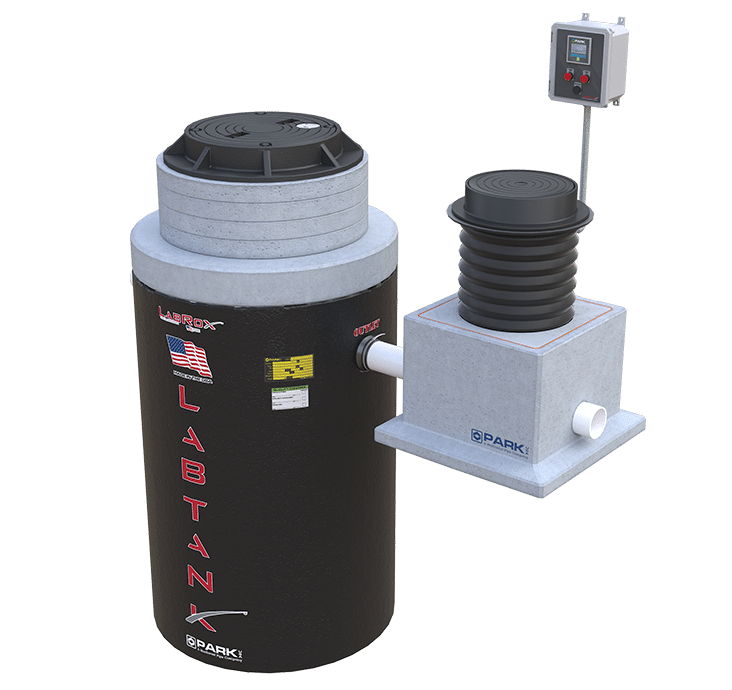

Monitors pH, level, temperature, and leak detection 24/7 with electronic monitoring.

Monolithic Construction

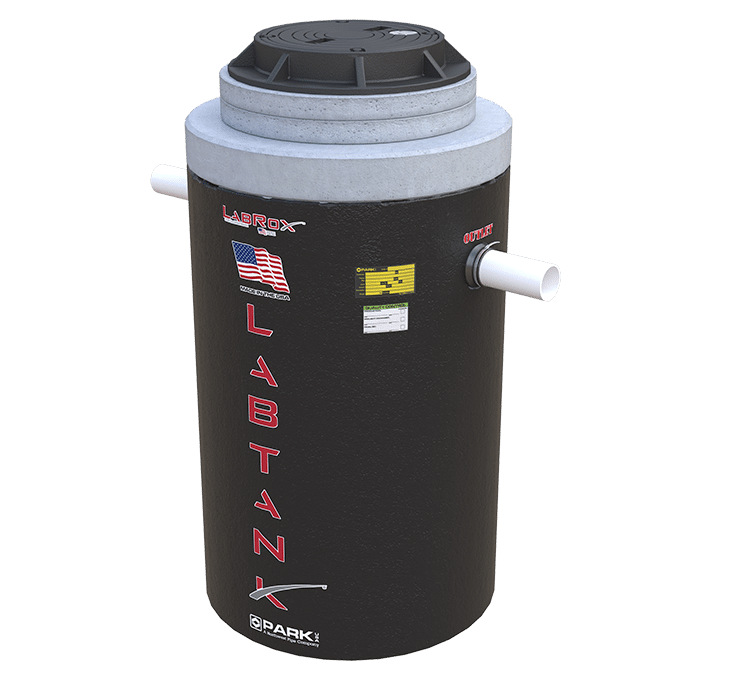

Monolithic tank and leakproof construction with choice of interior acid proof liners.

Details

The ParkUSA LabTankÒ supports responsible waste management in laboratory environments. The neutralization tanks or basins are designed to collect acidic waste and chemically neutralize it before it’s discharged into the sanitary sewer system and to protect laboratory workers and equipment from potential harm caused by acidic wastewater.

Our pH measuring system determines the degree of neutralization by calculating the concentration of hydrogen ions in the wastewater and then treating the wastewater with a neutralizing agent. The neutralized wastewater is then filtered and monitored for compliance with local, state, or federal regulations before it is discharged.

How It Works

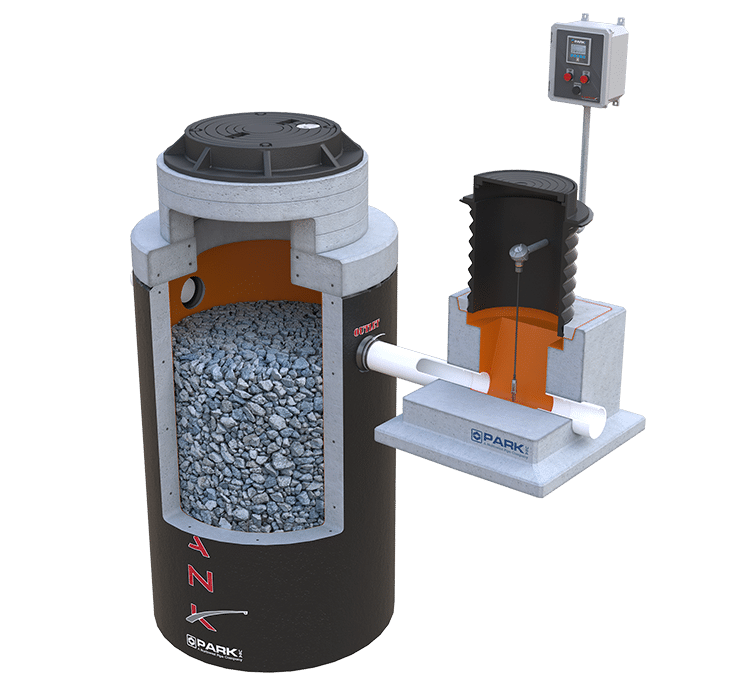

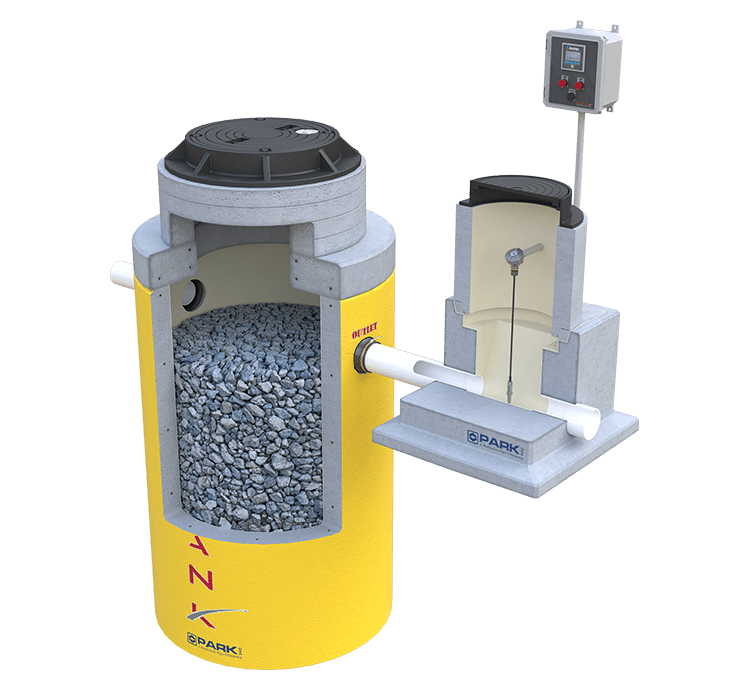

Acidic wastewater flows into the neutralization tank or basin, is neutralized with an agent such as sodium hydroxide or calcium carbonate rock media, then leaves the tank to discharge into sewer system in compliance with local, state, or federal regulations.

The neutralization process occurs through a chemical reaction between the acidic waste and calcium and magnesium carbonate. The degree of neutralization can be measured by the pH system, which determines the concentration of hydrogen ions. When the acidic wastewater comes into contact with neutralization media, a neutralization reaction occurs. The primary component of neutralization media is calcium carbonate, which reacts with the acid to produce calcium ions, water, and carbon dioxide gas. This reaction results in the neutralization of the acid, as the hydrogen ions are consumed by the reaction and the pH of the solution increases towards neutral.

Models

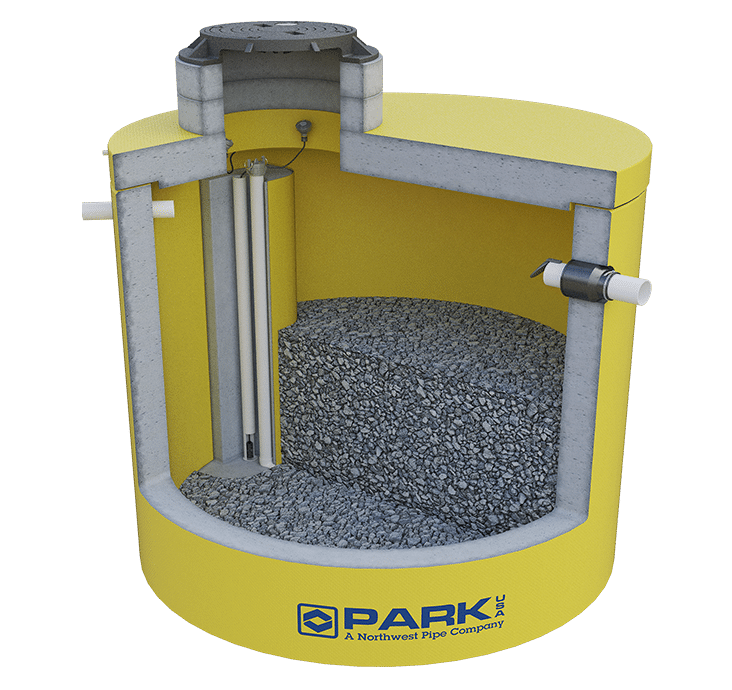

About the Precast Concrete Basin with HDPE Liner and Exterior Vapor Barrier

Model ANT-PB is an advanced acid neutralization system specifically designed to effectively neutralize acidic waste in a variety of environments. The system features a robust precast concrete basin that is lined with an interior chemical-resistant HDPE (High-Density Polyethylene) and an exterior vapor barrier. This combination provides both chemical resistance and structural integrity. Additionally, the system includes neutralization media that aids in the effective treatment of acidic waste. This system is designed for below-ground installation and is equipped with heavy-duty access covers, ensuring ease of inspection and maintenance.

Applications

A wastewater pH neutralizing and monitoring system can benefit a wide range of applications where wastewater with varying pH levels is generated.

Hospital, Medical or Research Facilities

Medical facilities generate wastewater with varying pH levels from laboratories and other specialized areas where chemicals are used.

Educational Labs and Facilities

School labs and all-around cleaning agents can also contribute to wastewater with varying pH levels.

Chemical and Petrochemical Industries

These industries produce wastewater with various pH levels as a result of their manufacturing processes.

Metal Finishing and Plating Industries

These industries use acidic or alkaline solutions during their processes.

Semiconductor and Electronics Manufacturing

Wastewater generated from these industries can contain chemicals and have varying pH levels.

Mining and Mineral Processing

Extraction and processing of minerals can generate wastewater with varying pH levels.

Water and Wastewater Treatment Plants

Neutralizing systems are essential components of many water and wastewater treatment plants.

Battery Manufacturing and Storage

Battery manufacturing involves the use of various chemicals, which need to be neutralized before discharge.

Food and Beverage Processing

Some food and beverage processing plants generate wastewater with high acidity or alkalinity due to the use of cleaning agents, additives, and byproducts.

Specs & Docs

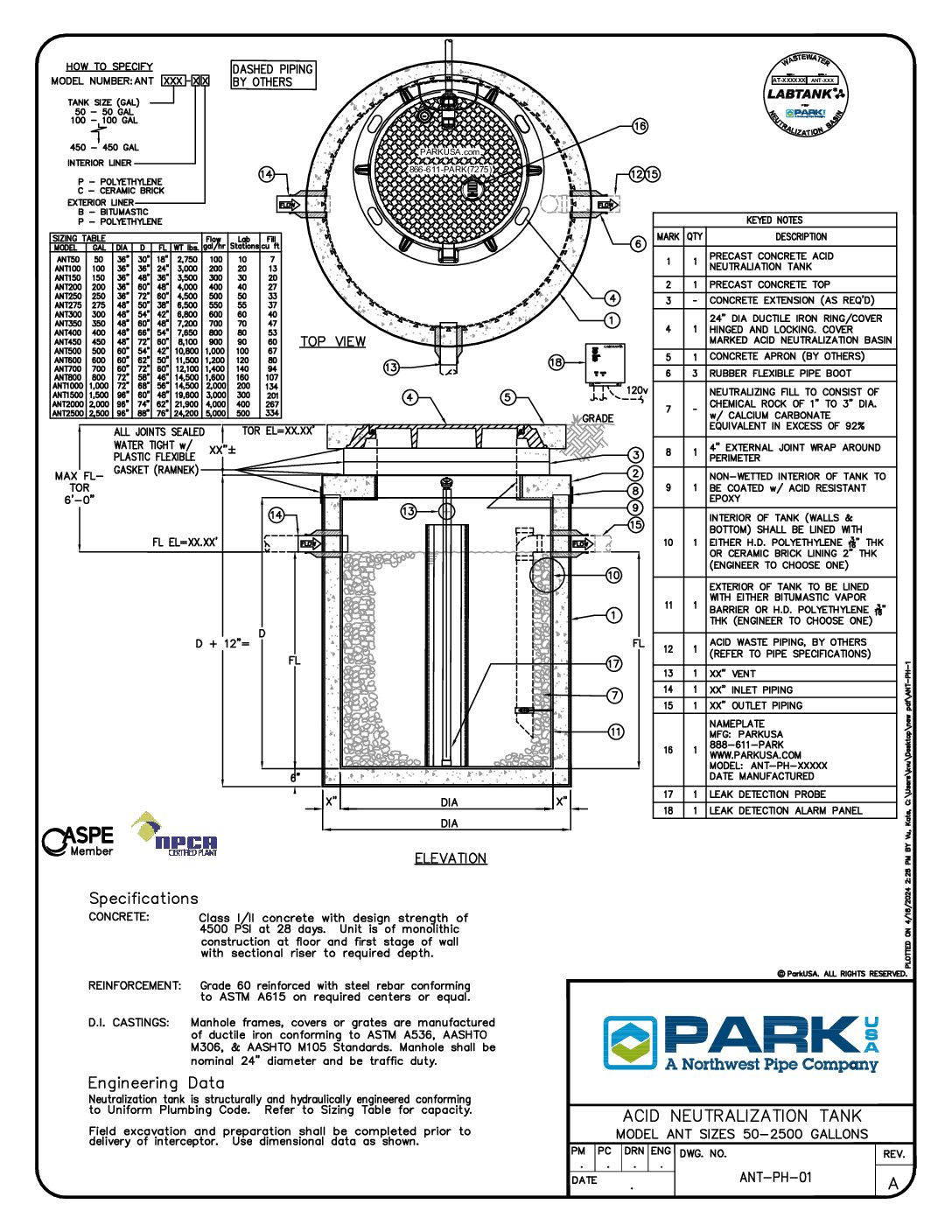

ANT-PH-1

Model ANT Neutralization System w/ pH Monitoring

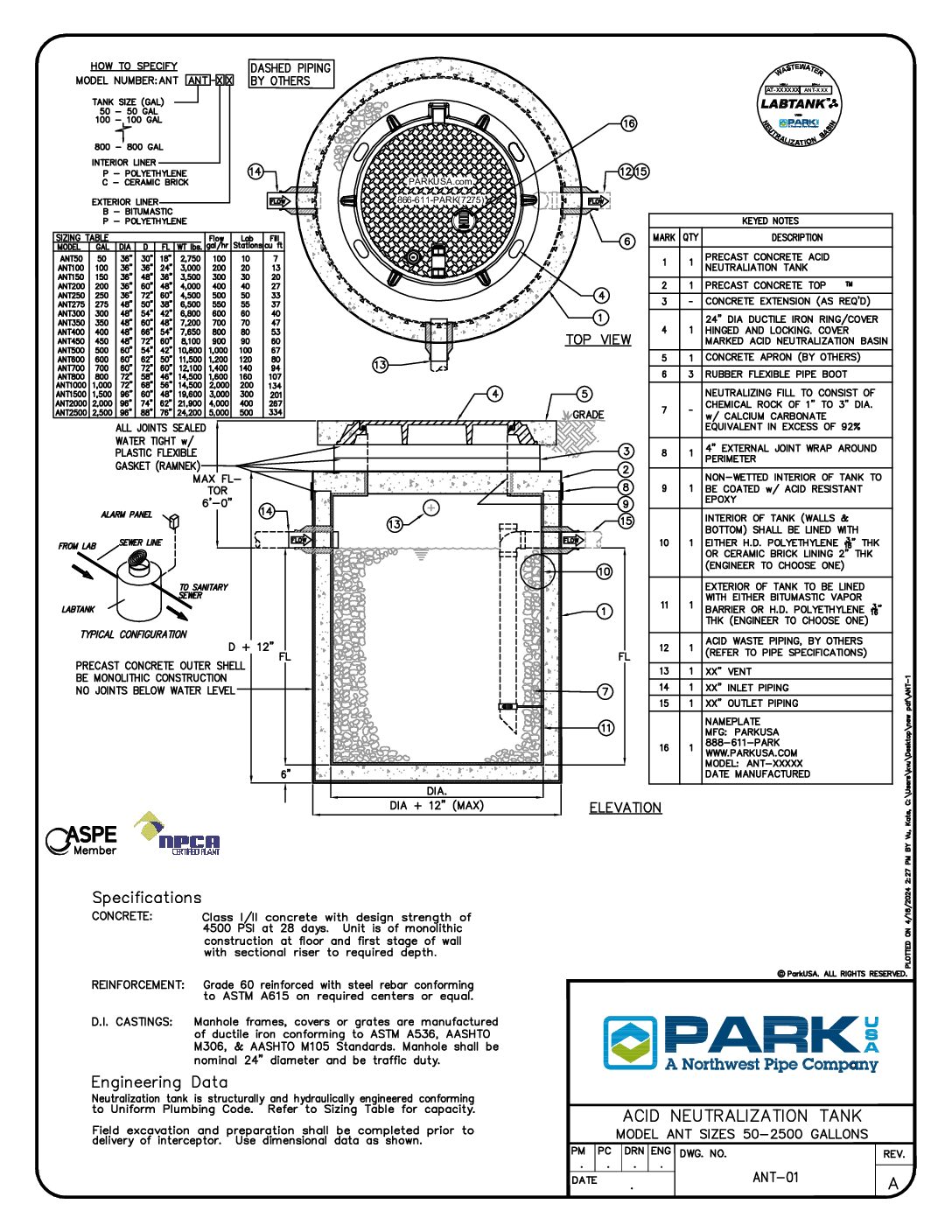

ANT-1

Model ANT Neutralization System

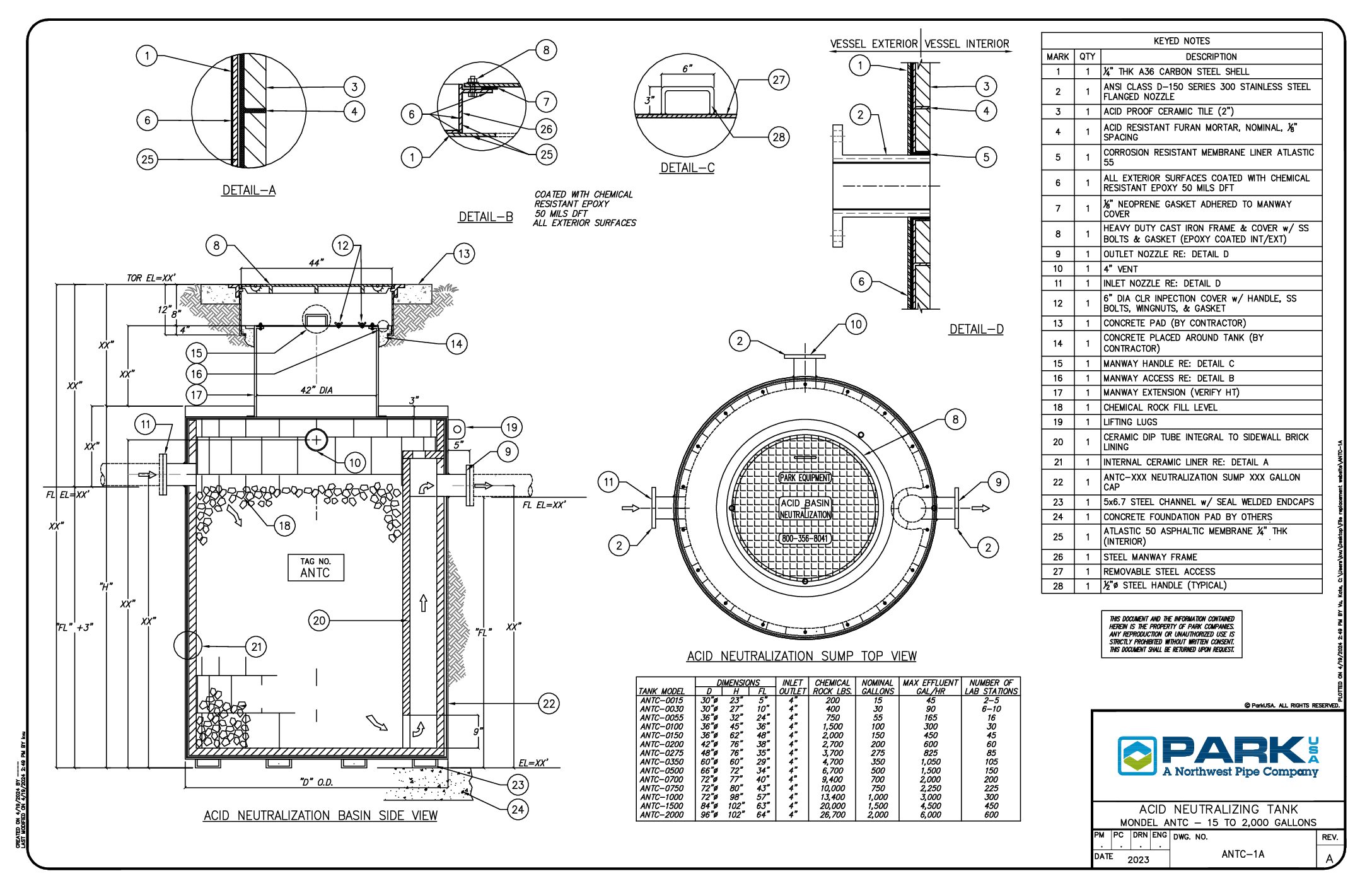

ANTC-1A

Model ANTC Neutralization System
